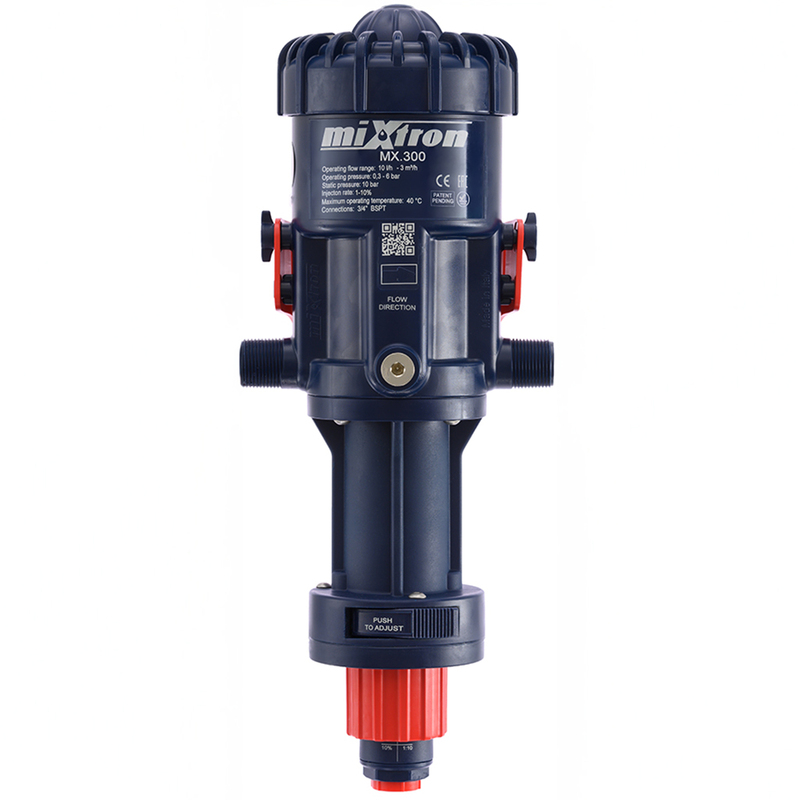

Dosing pump MX.300.P110
The dosing pump MX.300.P110 requires no power supply. It is a versatile and reliable solution for dosing liquids. Thanks to its flexible dosing ratio and operating pressure of between 0.3 and 6 bar, it is suitable for various applications. Its high strength is guaranteed by the AISI 316 and Duplex metal components, while the high quality technopolymers and range of availble seals ensure a long service life. The pump can be wall-mounted or directly installed on a drum, offering maximum flexibility and safety. Maximum peak pressure of 10 bar and operating temperature between 5°C and 40°C.
Features Dosing Pump MX.300.P110
Check the detailed technical specifications of the dosing pum MX.300.P110
Type: | Dosing Pump | |
|---|---|---|
Flow rate: | 3.000 l/h ; 13.2 gpm | |
Dosing: | 1 - 10 % | |
Dosing ratio: | 1:100 ; 1:10 | |
Operating pressure: | 0,3 - 6 bar ; 4.35 - 87 psi | |
Maximum static pressure: | 10 bar ; 145 psi | |
Temperature: | 5° - 40° C ; 41- 104° F | |
Installation: | Wall mounting; Suspended installation | |
Metal Components: | AISI 316, Duplex | |
Plastic Components: | POM, PP, HDPE, PA12 | |
Seals: | Viton, EPDM Viton EXT | |
